Lightweight & Strong Aluminum Gantry Crane
Our top quality and highly durable PORTAGANTRY® is lightweight and extremely strong. This mobile gantry crane from REID Lifting can be manually assembled, using just four bolts and can safely lift up to 11,000lb, making it ideal for multiple applications.
This mobile gantry crane offers an overhead anchor point for multiple users for fall protection, whilst also providing great versatility for lifting materials. Our PORTAGANTRY® range is highly customizable to meet your specific needs, with a variety of A-frame height configurations and beam lengths available.
“High quality aluminum gantry crane ideal for the heavy lifting of materials up to 11,000lb”
What is a gantry?
A gantry is an overhead structure supported by freestanding legs that move on wheels. A gantry crane is used to assist in the safe lifting of heavy objects in the workplace.
Key Features
OSHA compliant
ANSI Z359.18-17 compliant for fall protection applications
Goods lifting capacity of up to 11,000lb and personnel lifting capacity of up to 5500lb
Suitable for up to 3 persons for fall protection applications
Beams and A frames can be interchanged
Ergonomic 360° swivel-locking castors, as standard
Ease of assembly including height and span adjustment
Anodized for increased corrosion resistance
Engineered designs and bespoke sections reduce weight, providing lightweight portability
Configurations
The PORTAGANTRY® is available in a range of configurations and can be customised in line with specific requirements (subject to Capacity rating).
The PORTAGANTRY® has the ability to be moved under load. (Subject to detailed instruction and supervision by a competent person). This product is patented.
Trolley Options
Our portable gantry crane can support a range of trolley options such as a Gated Trolley and Gear Driven Trolley all designed to support your lifting requirements.
Storage Solutions
We understand that efficient storage and transport is critical for maintaining the longevity and performance of our lifting systems. Our range of options, including racks, pallets and trolley organization, are specifically designed to complement our lifting systems, ensuring they are stored securely and accessibly.
See our PORTAGANTRY in action
Choose your system

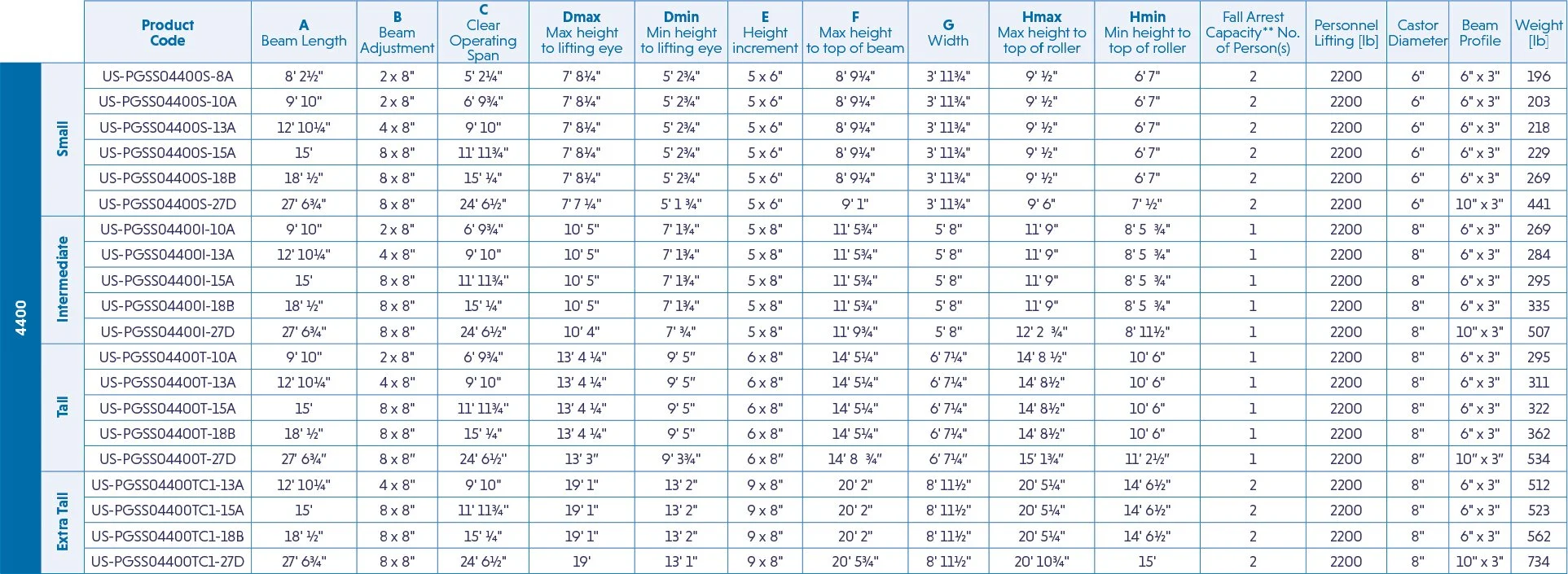

PORTAGANTRY® 4400lb
ANSI Z359.18-17 and OSHA compliant
Goods lifting up too 4400lb and personnel lifting up to 2200lb
Fall arrest capacity – up to 2 users
Easily customisable with our full range of trolley options and accessories
A range of A-frame heights and beam lengths to a range of work environments

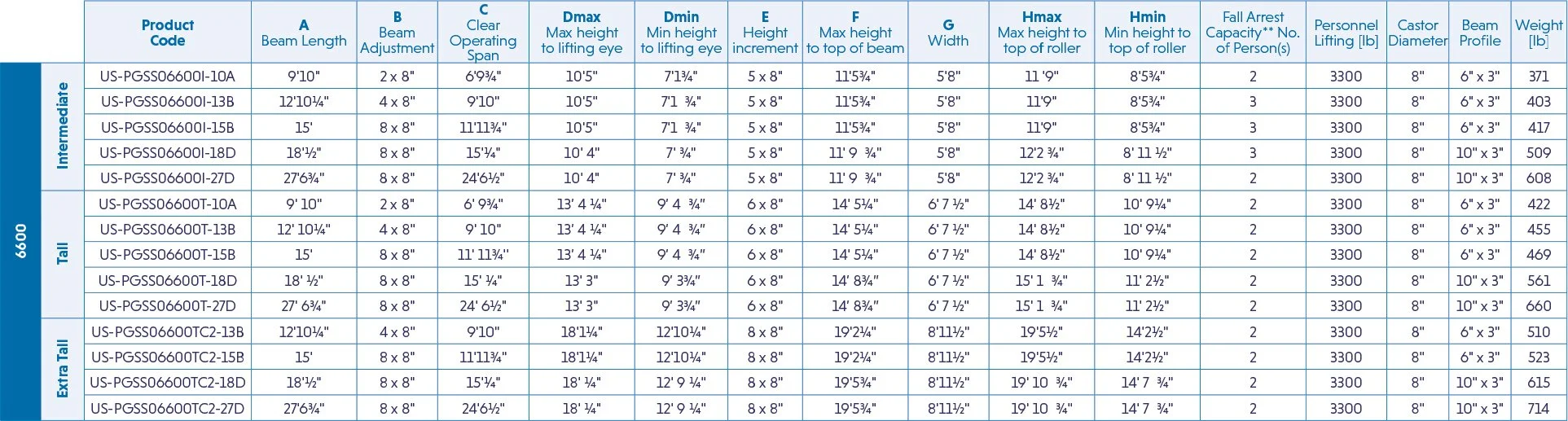

PORTAGANTRY 6600lb
ANSI Z359.18-17 and OSHA compliant
Goods lifting up too 6600lb and personnel lifting up to 3300lb
Fall arrest capacity – up to 2 users
Easily customisable with our full range of trolley options and accessories
A range of A-frame heights and beam lengths to suit a range of work environments

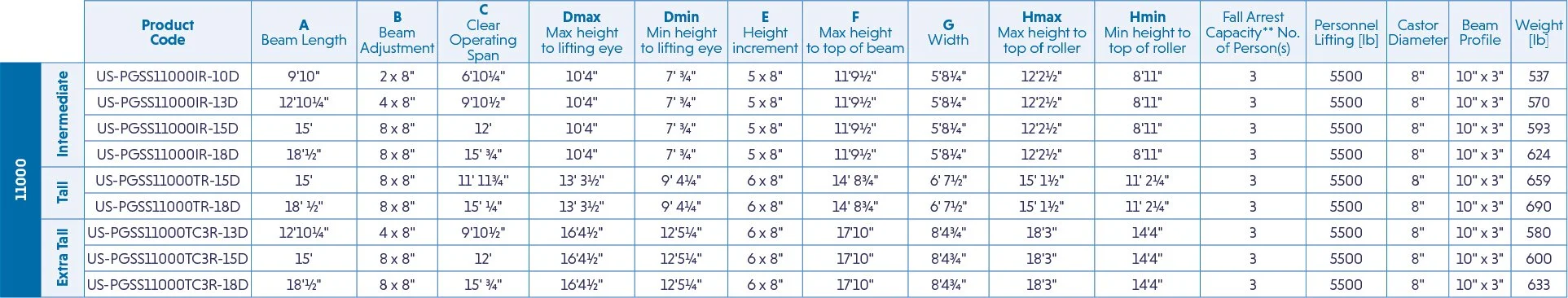

PORTAGANTRY 11000lb
ANSI Z359.18-17 and OSHA compliant
Goods lifting up too 11,000lb and personnel lifting up to 5500lb
Fall arrest capacity – up to 3 users
Easily customisable with our range of trolley options and accessories
A range of A-frame heights and beam lengths to suit a range of work environments
