TDAVIT - TDT Geared Trolley




Our TDAVIT - TDT is lightweight, portable and has been designed to meet customer needs where the lifting and moving of equipment in tight spaces is a challenge.

A truly unique product, it offers a lifting capacity of up to 880lb in combination with a geared trolley which is able to traverse the beam, in addition to 360 degree rotation under load. It is very well suited to plant rooms, engine rooms and kiosks or any area where space is a premium and flexibility in lifting, traversing and moving loads is needed.




“The ideal davit for plant rooms, engine rooms and kiosks or any area where space is a premium”




Key Features

  • A range of 3 column and 4 beam sizes to suit customer specific needs.

  • Variable beam traversing via integrated geared trolley and customers choice of hoist.

  • Trolley can be secured during lift.

  • Trolley can be traversed whilst under load [34¼" to 65½"].

  • Rotation under load due to patented integral bearing system.

  • Universal kingpin fits all Reid sockets.

  • Manufactured from marine grade alloy and anodised/powder coated for increased corrosion resistance.

  • Quality engineering and production parts reduce weight and provide high strength to weight ratios.

  • Two piece design to reduce manual handling concerns during transportation and assembly.

  • ATEX Zone 2 (explosive atmospheres) certification as standard.

  • ATEX Zone 1 (explosive atmospheres) as optional upgrade.

  • Can be assembled and operated by one person. No tools required.

Configurations

The TDT is available in several standard configurations to meet with customers most common requirements.

Custom solutions can be offered by request, subject to the working load limit requirements [contact REID for further guidance].




Choose your system

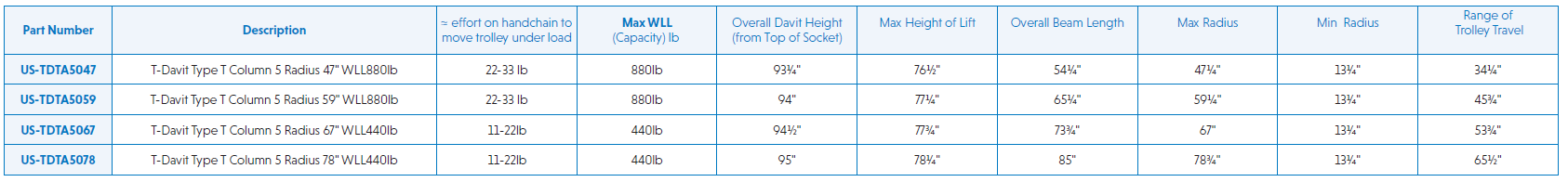

TDT Column 5

  • Universal kingpin that fits all REID sockets

  • ATEX Zone 2 certification as standard

  • ATEX Zone 1 as optional upgrade

  • Trolley can be traversed whilst under load [34¼" to 65½"]

  • 360 degree rotation under load

  • Can be combined with many manual or electrical hoists to completed lifting operations





TDT Column 4

  • Universal kingpin that fits all Reid sockets

  • ATEX Zone 2 certification as standard

  • ATEX Zone 1 as optional upgrade

  • Trolley can be traversed whilst under load [34¼" to 65½"]

  • 360 degree rotation under load

  • Can be combined with many manual or electrical hoists to completed lifting operations

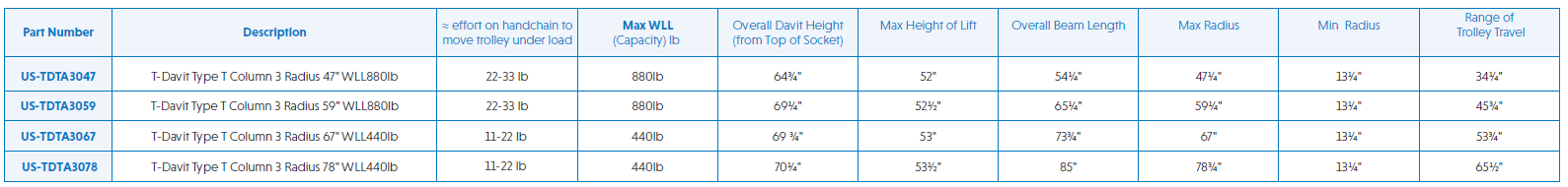

TDT Column 3

  • Universal kingpin that fits all Reid sockets

  • ATEX Zone 2 certification as standard

  • ATEX Zone 1 as optional upgrade

  • Trolley can be traversed whilst under load [34¼" to 65½"]

  • 360 degree rotation under load

  • Can be combined with many manual or electrical hoists to completed lifting operations
