Dual-Use portable gantry crane

Our unique and innovative PORTA GANTRY RAPIDE is a height-adjustable, foldable aluminum gantry crane designed for rapid deployment and is fully portable. Capable of an impressive load lifting capacity of up to 2200lb.

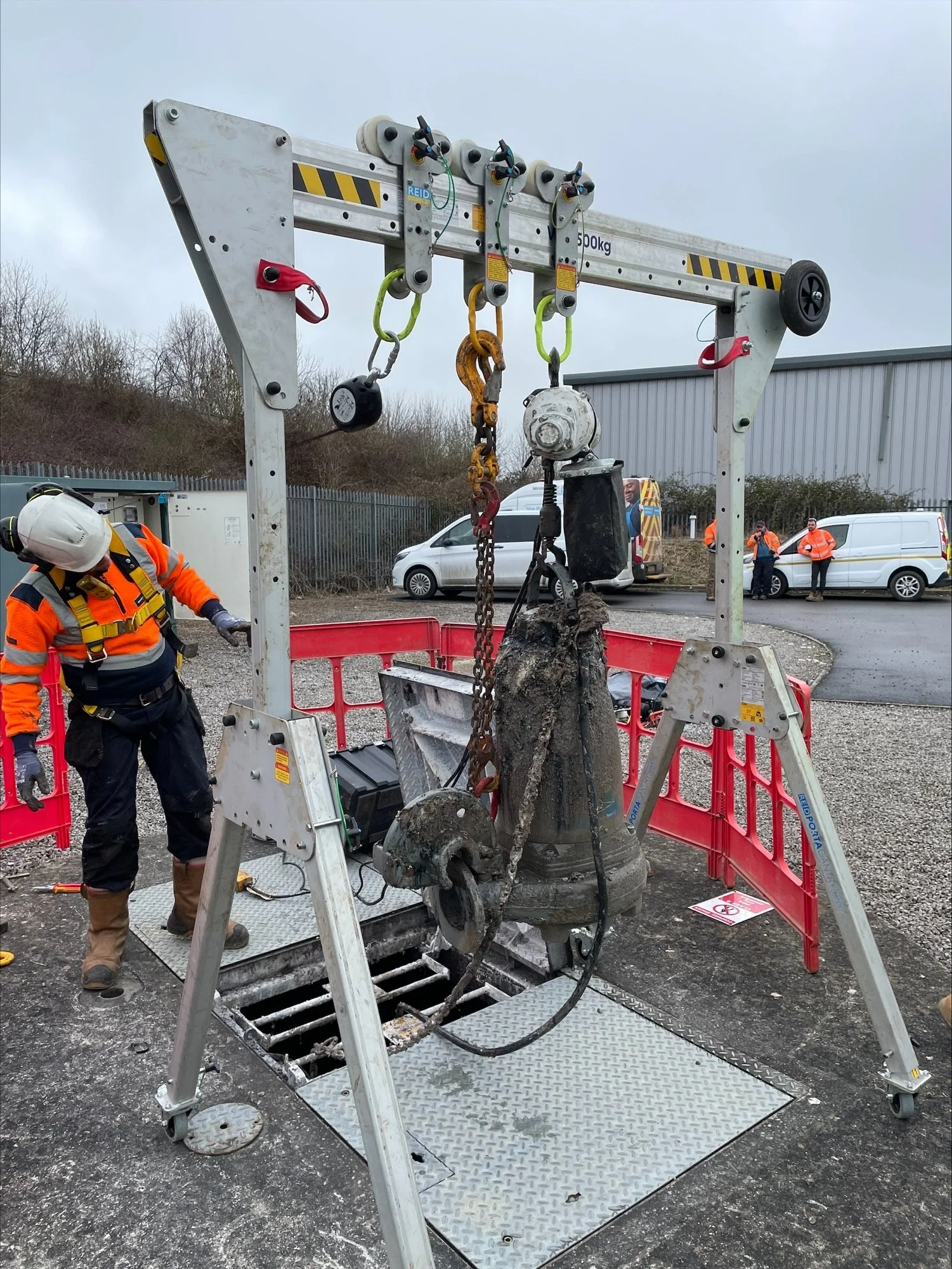

This mobile gantry crane from REID Lifting can be assembled by just one person within a minute without the need for any tools and is the perfect solution for Confined Space Access scenarios due to its unique features and ability to lift equipment and personnel.

“The perfect dual-use solution ideal for materials handling, working at height and confined space access tasks”

What is a gantry?

A gantry is an overhead structure supported by freestanding legs that move on wheels. A gantry crane is used to assist in the safe lifting of heavy objects in the workplace.

Key Features

OSHA compliant
ANSI Z359.18-17 compliant for fall protection applications
Goods lifting capacity of up to 2200lb and personnel lifting capacity of up to 1100lb

Integrated wheel design that folds with the frame for ease of transportation
Available in 3 height-adjustable versions (up to 9.5ft lifting eye height)
Can accommodate a range of beam lengths up to 13ft
Anodized for increased corrosion resistance
Engineered designs and bespoke sections reduce weight, providing lightweight portability

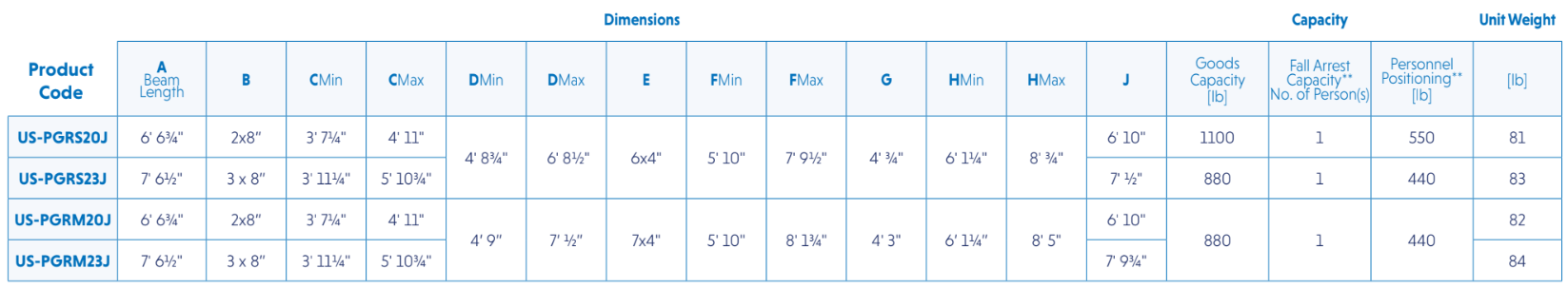

Configurations

This portable gantry system is available in a range of configurations and can be customized in line with specific requirements (subject to capacity rating).

The PORTA GANTRY RAPIDE top 5 features for goods lifting

Storage Solutions

We understand that efficient storage and transport is critical for maintaining the longevity and performance of our lifting systems. Check out our STOW ‘N’ GO storage container for your PGR specifically designed to protect the PGR during shipping, transport and storage.
