Our portable PORTADAVIT QUANTUM is a rapidly deployable, lightweight solution to heavy lifting and lowering of goods or personnel. Weighing from just 41lb when fully assembled it can be manually operated by just one person while maintaining a lifting capacity up to 1320lb.

This system is also ideal for confined space access tasks where lightweight portability is the key priority. A variety of models and accessories provide simple customization for specific work environments and building configurations.

Key Features

• OSHA compliant

• Capacity of up to 1320lb for goods lifting

• Personnel lifting up to 660lb

• Ease of assembly with the use of just one pin, no tools required

• Universal kingpin for all REID sockets and portable bases

• Ease of rotation under a full load

• Easy radius adjustment

• Bagged for ease of transportation

• Clean, anodized finish for increased corrosion resistance

• Engineered designs and bespoke sections reduce weight, providing lightweight portability

Configurations

The PORTADAVIT QUANTUM [PDQ] is available in a strop and winched version and each has adjustable radius points to increase the height of lift or reach.

The PDQ can be used with a wide range of lifting appliances, enabling customers to tailor their lifting solution to site and job specific requirements. This flexibility enables customers to utilize existing lifting appliances in many cases, enabling efficient use of assets.

• Manual winches can be mounted onto the davit column or backstay, with cables feeding through sheaves to the front of the davit.

• Manual or electric chain hoists can be hooked from the shackles on the head of the PDQ.

• Endless winches can be hooked from the shackles on the head of the PDQ for raising goods over greater distances.

REID offer a wide range of brackets to enable common winches from major manufacturers to be attached to the PDQ column or backstay. Please contact us or your local reseller for more information.

Why is the PORTA DAVIT QUANTUM ideal for personnel lifting and fall protection applications?

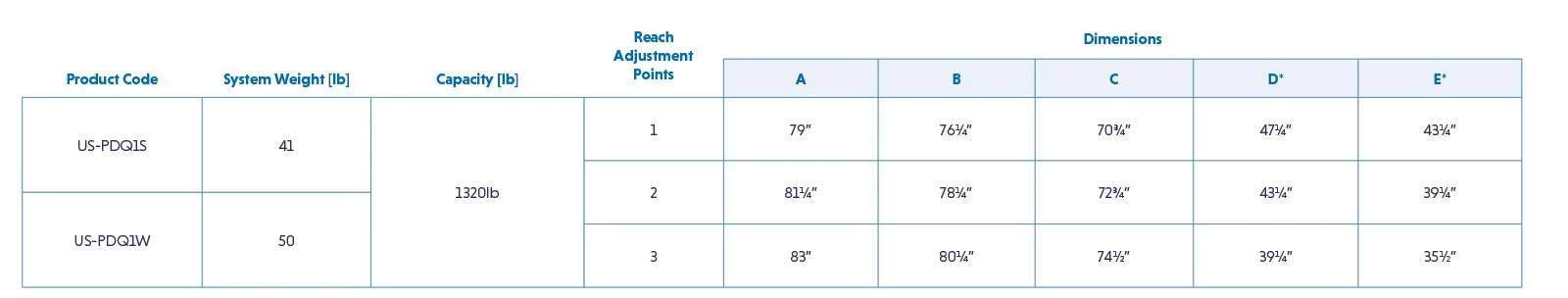

PORTADAVIT QUANTUM [1] Stropped

• OSHA compliant

• Goods capacity up to 1320lb and personnel capacity up to 660lb

• Three radius adjustment points

• Double shackle head for easy attachment of goods lifting accessories or fall arrest devices

• Suitable for use with our range of sockets and PORTABASE Counterbalance

*Not suitable for use with winches

PORTADAVIT QUANTUM [1] Winched

• OSHA compliant

• Goods capacity up to 1320lb and personnel capacity up to 660lb

• Three radius adjustment points

• Double shackle head for easy attachment of goods lifting accessories or fall arrest devices

• Double sheave head for winches and SRLs

• Winch connection points on the column and backstay

• Suitable for use with our range of sockets and PORTABASE Counterbalance

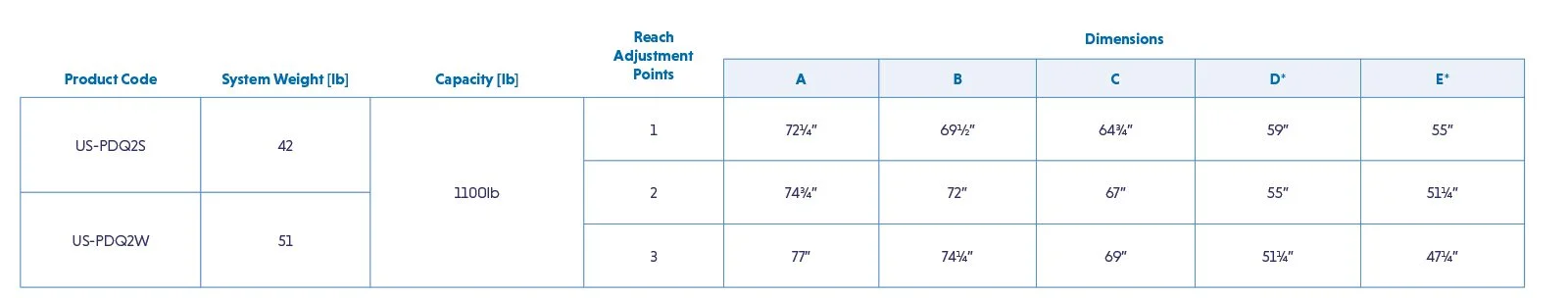

PORTADAVIT QUANTUM [2] Stropped

• OSHA compliant

• Goods capacity up to 1100lb and personnel capacity up to 550lb

• Three radius adjustment points

• Double shackle head for easy attachment of goods lifting accessories or fall arrest devices

• Suitable for use with our range of sockets

*Not suitable for use with winches

PORTADAVIT QUANTUM [Restricted] Winched

The restricted reach PDQ was developed for personnel safety tasks, specifically for confined space access with our PORTABASE products. It is equally ideal for lifting equipment or machinery too.

• OSHA compliant

• Personnel capacity up to 1320lb and goods capacity up to 660lb

• Fixed 31½” reach

• Double sheave head for winches and SRLs

• Winch connection points on the column and backstay

• Double shackle head for easy attachment of accessories

• Suitable for use with our range of sockets

• Suitable for use with our PORTABASE Counterbalance and H Base
