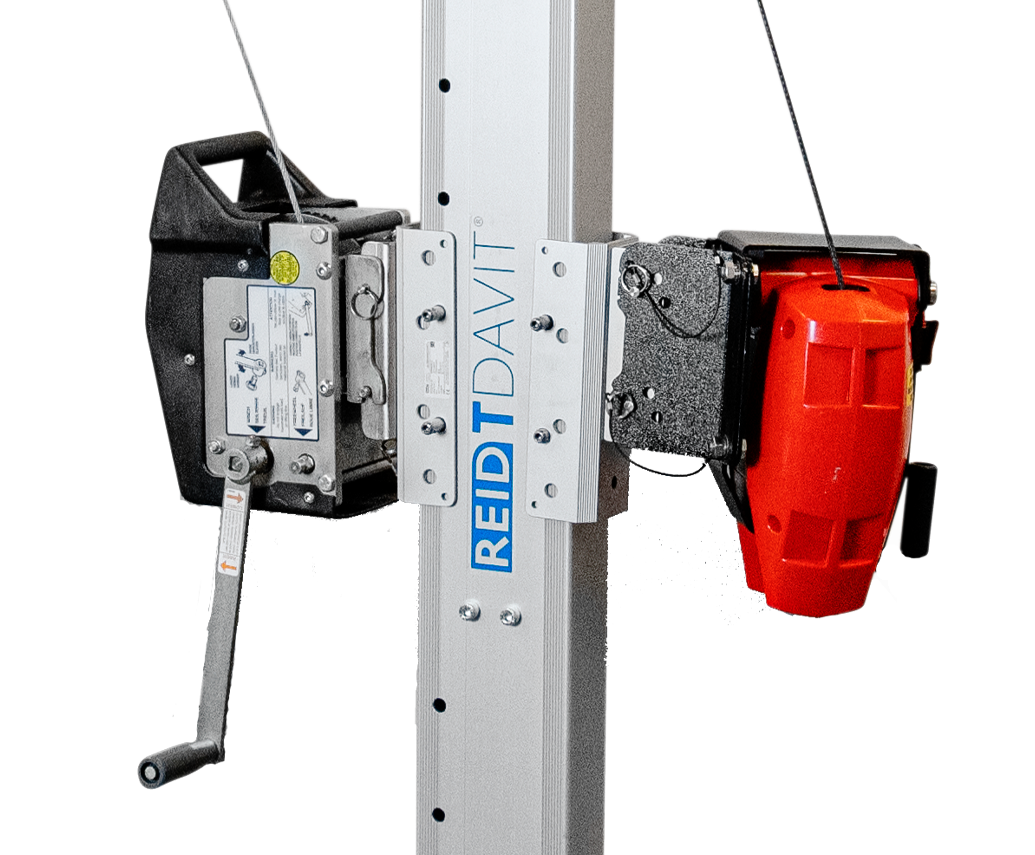

The TDAVIT Double Winched davit crane has been designed for fall protection applications, including confined space entry.

The TDDW is suitable for use with our range of sockets and portable bases and it has been tested to and is fully compliant with OSHA and ANSI Z359.18 2017.

Key features

• ANSI Z359.18-17 compliant.

• OSHA 1910 sub part I (.140) and 1926 sub part M compliant -MAF dependent on Davit reach.

• ATEX certified [Zone 2 standard, Zone 1 as an option].

• Fall arrest capacity – 1 user.

• Personnel capacity up to 660lb.

• Goods capacity up to 1320lb.

• Double sheave front and rear of beam for winch rope or winch cable.

• Double shackle head for lifting or attachment of PPE.

• Winch bracket options.

• Comes with a carry bag.

• Suitable for use with our range of sockets and portablebases (Restrictions apply).

Configurations

The TDDW is available in several standard configurations to meet with customers most common requirements.

Custom solutions can be offered by request, subject to the working load limit requirements [contact REID for further guidance].

TDDW Column 5

• ANSI Z359.18 2017 and OSHA compliant

• Goods lifting up to 1320lb and personnel lifting up to 660lb

• Double sheave front and rear of beam for winch rope or winch cable

• Double shackle head for lifting or attachment of PPE

• A wide range of common winch bracket options

• Suitable for use with our range of sockets and portable bases

TDDW Column 4

• ANSI Z359.18 2017 and OSHA compliant

• Goods lifting up to 1320lb and personnel lifting up to 660lb

• Double sheave front and rear of beam for winch rope or winch cable

• Double shackle head for easy attachment of hoists or fall arrest devices

• A wide range of common winch bracket options

• Suitable for use with our range of sockets and portable bases
