TDAVIT - TDW Winched





Our TDAVIT- TDW is lightweight, portable and has been designed primarily for goods and personnel lifting applications. It is also tested as a fall protection anchor device.

It has been tested to and is fully compliant with ANSI and OSHA regulations. The TDW is suitable for use with our range of sockets and portable bases.




“An ideal davit for confined space access and egress”



Key features

  • OSHA compliant

  • Meets requirements of SPRAT's standards and IRATA ICOP

  • ATEX Zone 2 (explosive atmospheres) certification as standard.

  • ATEX Zone 1 (explosive atmospheres) as optional upgrade.

  • ANSI Z359.18-17 compliant anchor point on the mast

  • Sheave front and rear of beam for winch rope or winch cable

  • Double shackle head for fall arrest devices

  • Fall arrest capacity – 1 user.

  • Personnel capacity up to 660lb.

  • Goods capacity up to 1320lb.

  • Double shackle head for lifting or attachment of PPE.

  • Winch bracket options available for a variety of winches and retrieval SRL's.

  • Comes with a carry bag.

  • Suitable for use with our range of sockets and portable bases*.

Configurations

The TDW is available in several standard configurations to meet with customers most common requirements.

Custom solutions can be offered by request, subject to the working load limit requirements [contact REID for further guidance].




Choose your system



TDW Column 5

  • OSHA compliant

  • Meets requirements of SPRAT's standards and IRATA ICOP

  • ATEX certified [Zone 2 standard, Zone 1 as an option]

  • Fall arrest capacity – 1 user

  • Personnel capacity up to 660lb

  • Goods capacity up to 1320lb

  • ANSI Z359.18-17 compliant anchor point on the mast

  • Sheave front and rear of beam for winch rope or winch cable

  • Double shackle head for fall arrest devices

  • Winch bracket options

  • Suitable for use with our range of sockets and portable bases




TDW Column 4

  • OSHA compliant

  • Meets requirements of SPRAT's standards and IRATA ICOP

  • ATEX certified [Zone 2 standard, Zone 1 as an option]

  • Fall arrest capacity – 1 user

  • Personnel capacity up to 660lb

  • Goods capacity up to 1320lb

  • ANSI Z359.18-17 compliant anchor point on the mast

  • Sheave front and rear of beam for winch rope or winch cable

  • Double shackle head for fall arrest devices

  • Winch bracket options

  • Suitable for use with our range of sockets and portable bases

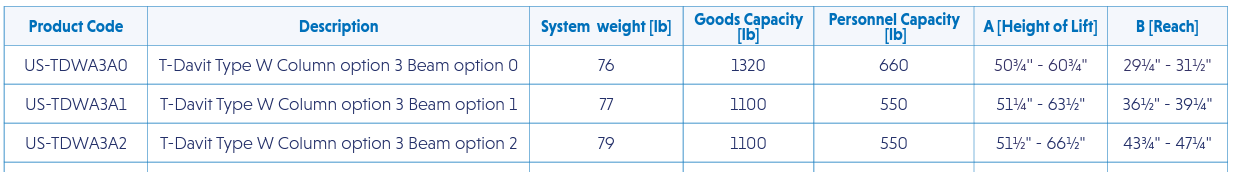

TDW Column 3

  • OSHA compliant

  • Meets requirements of SPRAT's standards and IRATA ICOP

  • ATEX certified [Zone 2 standard, Zone 1 as an option]

  • Fall arrest capacity – 1 user

  • Personnel capacity up to 660lb

  • Goods capacity up to 1320lb

  • ANSI Z359.18-17 compliant anchor point on the mast

  • Sheave front and rear of beam for winch rope or winch cable

  • Double shackle head for fall arrest devices

  • Winch bracket options

  • Suitable for use with our range of sockets and portable bases



Suitable Sockets & Bases



Top Mount Socket



Side Mount Socket



Bridge Mount Socket




Counterbalance



Flush Mount Socket



H Base*

Restrictions apply [systems up to a 31½" reach only with H Base]
