PORTAGANTRY | Load Bearing Pneumatic Castor Model



Our PORTAGANTRY featuring load bearing Pneumatic Castors with air filled tires offers a quality solution for customers that need to set up and locate their lifting solution on rough terrain, or on roof tops where a standard castor may otherwise cause damage to the surface material.


Additionally, the gantry permits movement under load in many scenarios which is made possible by high quality directional locking castors and overall robust gantry design. The product is available in two capacity frames including 4400lb and 6600lb with a range of beam options and variable frame heights from intermediate and above giving height of lift from 19' 5" to 18' 6½".

The gantry will not be rated as a fall protection product and is for material lifting only.





“A quality lifting solution for rough terrain or on rooftops where a standard castor may otherwise cause damage to surface material”

Key features

  • Directional locking dual wheel castors with integrated brakes

  • Tires are air filled

  • Integrated lifting points and wheel on the frames to support safe raise and lower of the gantry with mechanical advantage

  • Integrated shackled cheek plates to enable safe load traversing along the beam

  • Integrated ratchet raise and lower system for height adjustment

  • Height adjustments at 4” increments

  • Beam adjustment points to enable adjustment of the span to suit site conditions

  • Ability to be able to interchange frames for maximum utilization and freedom to achieve even the most challenging of lifting tasks

Configurations

The PORTAGANTRY featuring load bearing Pneumatic Castors is available in a range of configurations and can be customized in line with specific requirements (subject to WLL rating).

The PORTAGANTRY featuring load bearing Pneumatic Castors has the ability to be moved under load. (Subject to detailed instruction and supervision by a competent person). This product is patented.

Trolley Options

Our PORTAGANTRY featuring load bearing Pneumatic Castors can support a range of trolley options such as a Gated Trolley, Gear Driven Trolley and Master Link Trolley all designed to support your lifting requirements.

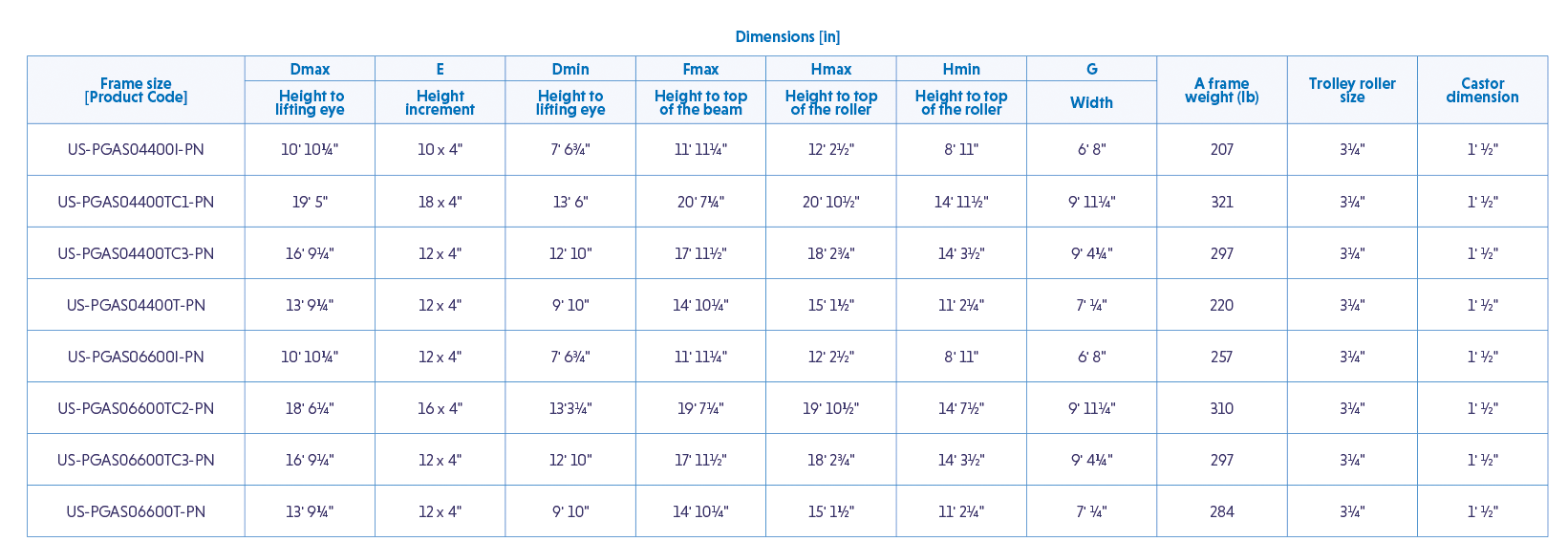

Select your A-Frame size



PORTAGANTRY Load Bearing Pneumatic Castor Model [4400-6600lb]

  • Directional locking dual wheel castors with integrated brakes. Tires are air filled

  • Integrated ratchet raise and lower system for height adjustment

  • Integrated shackled cheek plates to enable safe load traversing along the beam



Choose your beam length



  • Beams come with integrated carry handles for ease of transportation

  • Multiple holes along the beam provide easy adjustment of beam length on the A-frame

  • A variety of beam lengths can be interchanged

  • Can support a wide range of trolley options



For more information on what our portable lifting systems can do, take a look at our case studies here.
