PORTX Barrel Mount
The PORTX Barrel Mount offers a robust and versatile solution for both trenching & shoring and mounting applications on parapet walls, where the mounting surface is greater than 2 ½".
The high strength galvanized steel PortX Barrel Mount has a clamping capacity from 2 ½" to 23 ½", meaning it can be used in conjunction with even the largest trench boxes as well as many conventional parapet walls in water site maintenance and other industrial applications.

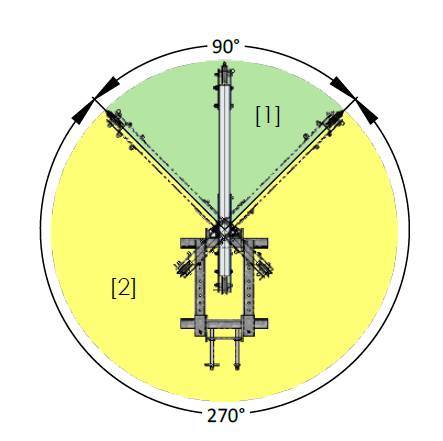

A unique feature of the Barrel mount is that it allows for 90° of rotation whilst remaining fully fall arrest compliant. This means the operators can ascend and descend ladders or stairwells with complete confidence, even when these are offset from the base of the socket. In addition, the davit can perform a full 360° rotation whilst lifting material only loads up to a maximum of 350lb.
Optimised to be used in conjunction with the 31 ½" reach PortX Davit, the Barrel Mount can also be used with other Reid davit solutions up 47 ¼" reach, allowing increased versatility while taking advantage of the patented Reid kingpin bearing system, that makes rotating even heavier loads easy, while reducing maintenance needs
Key features and spec
Up to 350lb goods and 330lb personnel capacity
Galvanized steel frame means increased durability
No PVC davit sleeve therefore easier rotation under weight
90° of fall arrest – This allows for safe use even when the davit isn’t directly forward in mount
360° rotation under WLL allows users to safely attach and detach loads and personnel before lifting and lowering
Up to 47 ¼" offset davit masts – Use of davits with longer arms provides greater reach and versatility, allowing access to confined spaces from a safer distance and offering more options for positioning
